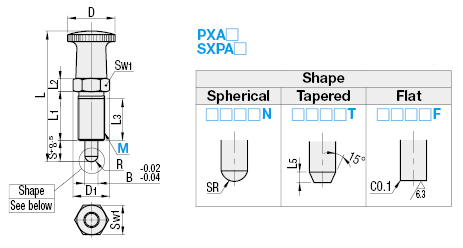

Index Plungers ， Series PXA/SPXA Return Type
Material: stainless steel for index plungers body;
Size: M5 – M16
 |
 |
Index Plungers, Return Type
| Size | Pitch | D | D1 | S | B | L | |
| Returning | Rest Position | ||||||
| M5 | 0.5 | 10 | 8.1 | 5 | 2 | 35 | 41 |
| M6 | 0.75 | 12 | 9.2 | 5 | 2.5 | 36 | 42 |
| M8 | 1 | 15 | 11.5 | 4 | 4 | 40 | 46 |
| M8L | 6 | 42 | 48 | ||||
| M10 | 1 | 18 | 13.8 | 5 | 5 | 45 | 50 |
| M10L | 8 | 48 | 53 | ||||
| M12 | 1.5 | 21 | 16.2 | 6 | 6 | 54.5 | 60.5 |
| M12L | 10 | 58.5 | 64.5 | ||||
| M16 | 1.5 | 26 | 21.9 | 7 | 8 | 68 | 75.5 |
| M16L | 12 | 73 | 80.5 | ||||
